MX660 Mesh RGB

Advanced Mid-Tower Case with Powerful Airflow

MX660 Mesh RGB is an upgraded mid-tower case, which continues COUGAR’s iconic style. The massive mesh front panel with folding angles provides better air flow performance. With three ARGB VK120 fans and a crystal clear tempered glass left panel, you are freely to create a clear view of your computer’s internal components.



Iconic Design DNA and Powerful Airflow

MX660 Mesh RGB’s front panel combines with COUGAR’s industrial style and powerful airflow. Not only make sure your critical hardware can be maximum cooled, but also help you to create an impressive build!





Enjoy the Dazzling RGB Show

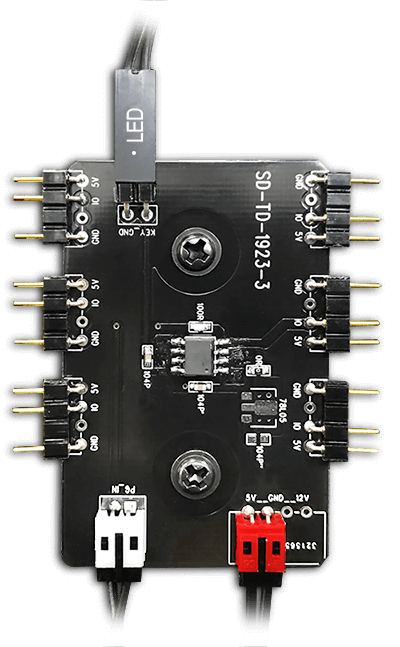

The integrated lighting button and ARGB VK120 fans with built-in LED controller, allows MX660 Mesh RGB to display amazing lighting effects. It’s also adaptable with any compatible motherboards’ 5V ARGB connection for system-wide lighting synchronization. The powerful lights come out of a stylish panel and the reflective surroundings helps reinforce the RGB effects.





Three ARGB VK120 fans included

VK120 fan with Tri-Directional RGB Circle of Light that deliver a powerful and bright RGB lighting effect. In addition, VK120 equipped premium Hydro-Dynamic-Bearing and PWM function can provide more durable and silent performance.







Massive Tempered Glass Left Panel

With the full-length PSU cover hides cables and a massive tempered glass left panel presents a clean and tidy build, you can easily build a pro-level system. Furthermore, we use metal frames, instead of drilling tempered glass with 4 holes in corners, which helps to upgrade the durability.





Vertical GPU Support

This revolutionary case is both about performance and aesthetics. To bring your system’s awesomeness to the limit, MX660 Mesh RGB supports vertical GPU installation.





Top-notch Gaming Hardware

To offer top-notch performance, MX660 Mesh RGB is able to house a mighty build. Its excellent support for up to 410mm-long graphics cards and E-ATX motherboards bring you unprecedented freedom of hardware system.





Easy access and connectivity for all your devices

With USB 3.1 Gen-2 Type-C and USB 3.0 ports, MX660 Mesh RGB connects to the latest devices. It also brings high-speed connections to fulfill massive data transfer needs for the ultimate PC enthusiast.



Superior Cooling

With great support for up to 360mm water cooling radiator and eight fans, you will enjoy superior cooling horsepower to keep advanced components safe from overheating.



Water cooling radiator support



Air cooling support







Specifications

Product Name		MX660 Mesh RGB
Case Form Factor		Mid Tower
Motherboard Type		Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD)		213 x 495 x 474 (mm) 8.4 x 19.5 x 19 (in)
I/O Panel		Type C 3.1 x 1, USB3.0 x 2, Mic x 1 / Audio x 1, RGB Button
3.5″ Drive Bay		2
2.5″ Drive Bay		5+2 ( converted from 3.5″ drive bays ) / ( 2 SSD trays included )
Expansion Slots		7+2
Cooling Fan Support	Front	*120mm x 3 ( ARGB VK120 fans x 3 pre-installed ) / 140mm x 2
	Top	120mm x 3 / 140mm x 2
	Rear	120mm
	PSU Cover	120mm ( for HDD Cooling )
Maximun Number of Fans		8 Max.
Water Cooling Support	Front	*360mm / 280mm / 240mm / 140mm / 120 mm
	Top	*360mm / 280mm / 240mm / 140mm / 120mm
	Rear	120mm
Onboard Lighting System		Yes
RGB Sync with M/B		Yes
Max. Graphics Card Length		410 (mm) / 16.1 (in) (Horizontal graphics card slots are compatible with RTX 3090/3080/3070.)
Max. CPU Cooler Height		165 (mm) / 6.5 (in)
Max. PSU length		200 (mm) / 7.9 (in)
